Dynamometer DYN 77

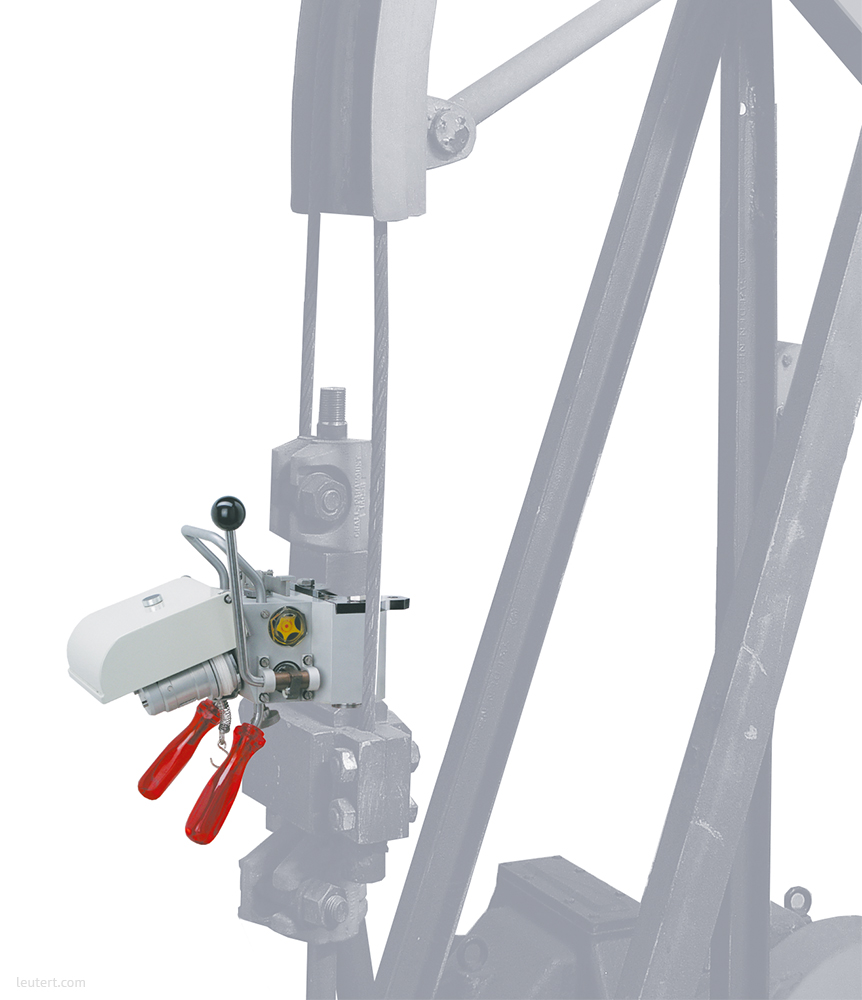

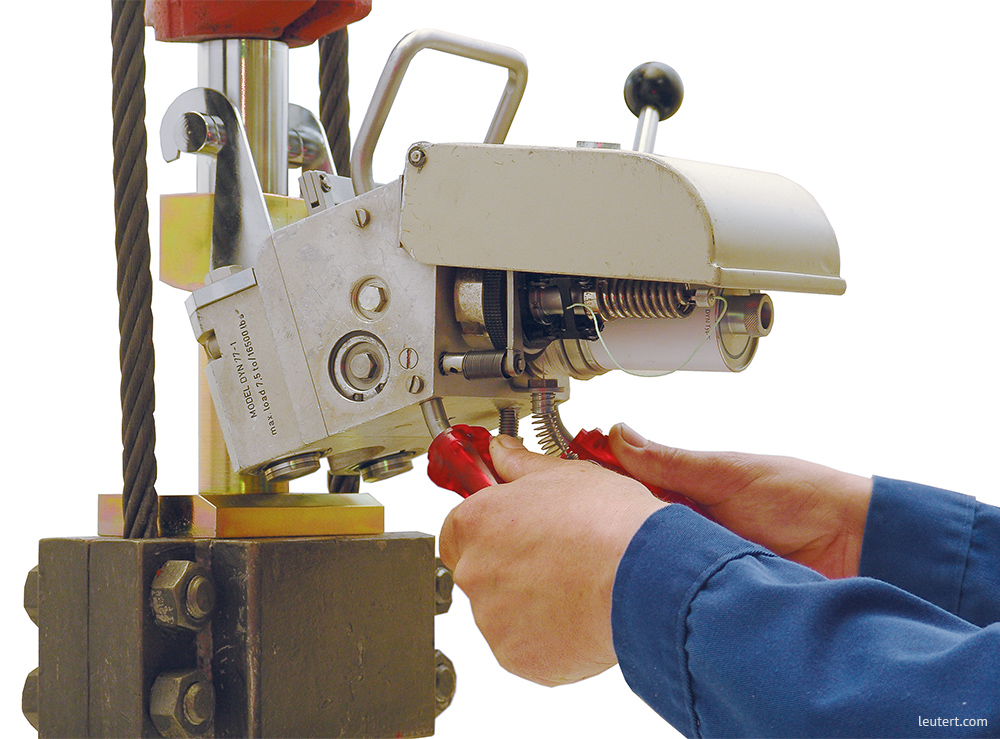

Dynamometer logging only achieves maximum significance, if the instrument can be fitted quickly and without interruption of the pumping process or change of the plunger setting-depth. Its installation is so simple that it can be fitted without special training by any field operator. In contrast to other dynamometers in the market, the Dynamometer DYN 77 fits these basic requirements ideally, because it may be fitted to the traveling polished rod and registers the actual cyclic fluctuations of pump loading within minutes without disturbance of subsurface conditions.

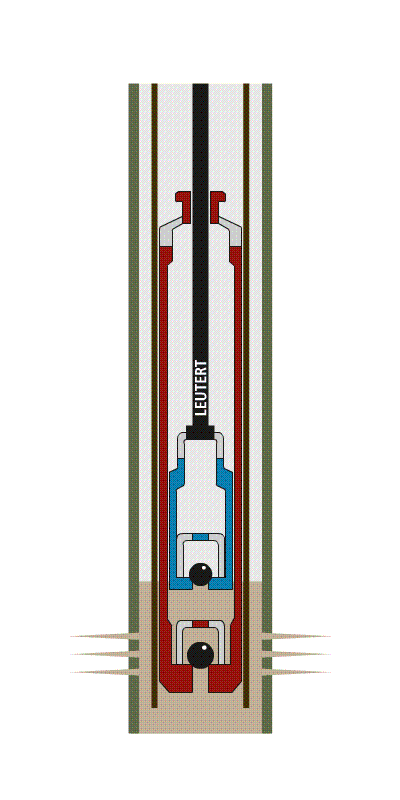

This instrument records the polished rod load (instantaneous load) throughout the working cycle of a deep well pump. It provides accurate information about pump efficiency and the production that may be expected from it. It allows for recognizing the onset of pump failures, such as plunger or barrel wear and worn or sticking valves, prior to a production drop becoming apparent.
Dynamometer DYN 77.1
| Max. load: | 75 kN / 7.5 tons / 16,500 lbs | |
| Max. stroke: |
1 to 8 m (39 to 315") |
|
| Min. distance between bridels: | 140 mm (5 1/2") | |
| Dimensions: | a = 135 mm (5.315"); b = 45 mm (1.772"); c = 275 mm (10.827"); d = 95 mm (3.740") |
|
| Weight w/o accessories: | 7.2 kg (15.6 lbs) | |
| Polished rod Ø: | 1 1/8" | 1 1/4" |
| Size of spacer: | DYA 76.2 | DYA 76.4 |
Dynamometer DYN 77.2
| Max. load: | 140 kN / 14.5 tons / 31,000 lbs | |
| Max. stroke: |
1 to 8 m (39 to 315") |
|
| Min. distance between bridels: | 190 mm (7 1/2") | |
| Dimensions: | a = 184 mm (7.244"); b = 52 mm (2.047"); c = 291 mm (11.457"); d = 110 mm (4.331") |
|
| Weight w/o accessories: | 9.1 kg (20.0 lbs) | |
| Polished rod Ø: | 1 1/4" | 1 1/2" |
| Size of spacer: | DYA 76.5 | DYA 76.7 |
